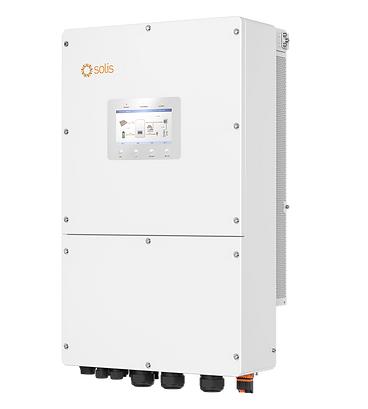

S6-EH3P(29-50)K-H

S6-EH3P(29.9-50)K-H Series, a high voltage, three-phase energy storage solution for commercial applications. This inverter series features a maximum charge/discharge current of 70A+70A across two battery ports, four integrated MPPTs with a 20A string current capacity, and supports parallel operation of up to six units. It offers a backup port with 1.6 times overload support and peak shaving control in both "self-use" and "generator" modes. Compatible with a wide range of batteries, it ensures unmatched power delivery for on or off-grid applications.


Features

  • 2 seconds of 160% overload capability

  • Supports peak shaving features in "self-use" and "generator" modes

  • Supports unbalanced and half-wave loads on both the grid and backup port

  • Supports 200% DC/AC ratio to maximize PV charging and provide long backup hours

  • Supports a maximum input current of 20A, ideal for all high-power PV modules from any brand

  • Battery real-time monitoring, remote upgrade, and battery healing function to prolong battery life

  • Wide battery voltage range accommodates prevalent highvoltage lithium batteries

  • Battery charging/discharging current 140A/70A+70A, suitable for 280Ah cell standard 0.5C application condition
